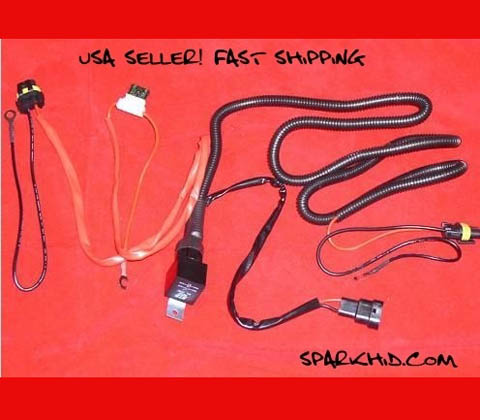

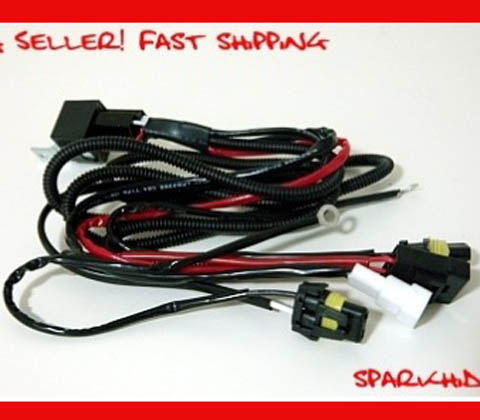

* 9005 9006 Xenon HID Relay Wiring Harness
* Wiring harness is a direct fit for 9005 or 9006 only!
* This powers both ballasts.
* 9005/9006  Harness comes exactly as seen in the picture.
* Harness connects directly to battery for reliable power.
* Sealed water tight 40 amp relay and 30 amp fuse protects your cars stock wiring.

* New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag.

All HID Kit ballasts or bulbs which are 9006 or 9005.
*INSTALL INSTRUCTIONS: 1) CONNECT THICK RED WIRE STRAIGHT TO THE BATTERY(RED IS POSITIVE).
2) CONNECT TWO BLACK GROUND WIRES TO CHASSIS GROUND.  MAKE SURE YOU HAVE A GOOD CONNECTION TO UNPAINTED METAL(SAND OR SCRATCH PAINT IF NECESSARY) .  YOUR VEHICLE MAY HAVE AN EXISTING BOLT/SCREW THAT CAN BE USED FOR CONNECTIONS.   IF A EXISTING BOLT/SCREW IS NOT AVAILABLE , A HOLE CAN BE DRILLED AND THE ATTACHED WITH A BOLT OR SHEET METAL SCREW.
3) PLUG IN LONG AND SHORT MALE CONNECTORS INTO THE RIGHT AND LEFT SIDE BALLAST.  (THIS IS THE POWER WIRE FOR EACH BALLAST)
4) PLUG IN 9005/9006 CONNECTOR TO YOUR CARS / TRUCKS STOCK  HEADLIGHT CONNECTOR.
NOTE **  ONLY ONE SIDE OF THE CARS 9005/9006 HEADLIGHT CONNECTORS IS NEEDED.  THE OTHER SIDE CAN REMAIN UNPLUGGED.
THE  STOCK WIRING WILL ONLY HAVE A SMALL AMP DRAW TO ACTIVATE THE RELAY.
MAIN HIGH AMP DRAW WILL NOW COME DIRECTLY FROM THE BATTERY THROUGH THE RELAY SYSTEM.
